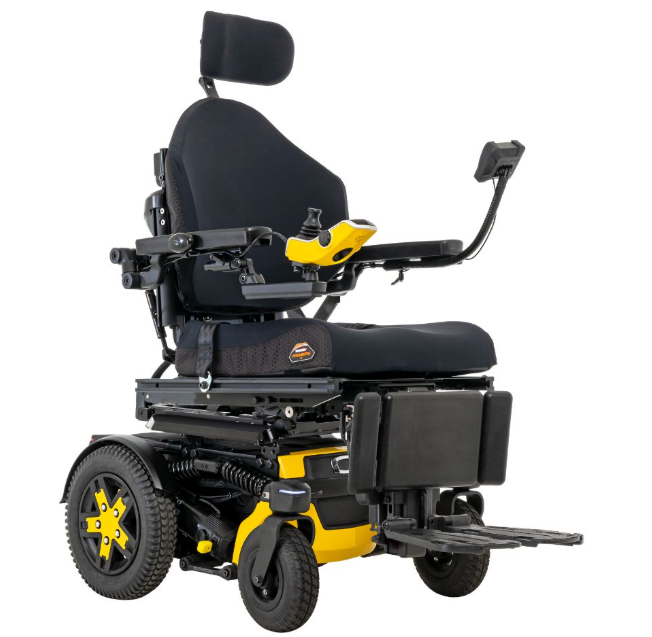

The R-Trak brings one of the smoothest rides available in the UK, blending style with high performance. Equipped with an advanced SRS suspension system, it delivers a consistently comfortable experience across all terrains, making it an excellent choice for active users. Its newly refined design, featuring sleek aesthetic touches, adds a touch of elegance without sacrificing power. With the R-Trak, you’ll enjoy premium features, like up to ten inches of powered seat elevation, maintaining a top speed of 3.5 mph even when elevated. With 50 degrees of tilt, it is one of the top elevating powerchairs available.
| Drive Configuration
|
Rear-wheel Drive
|
|---|---|
| Weight Capacity
|
21.6st (136 kg)
|
| Turning Radius
|
25.7 in. (653 mm)
|
| Length
|
34.8″ (884 mm)
|
| Width
|
24.2″ (615mm) with 14″ wheels 26.2 (665mm) with knobby wheels
|
| Ground Clearance
|
3.97″ (101 mm)
|
| Max. Obstacle Climbing
|
2.36″ (60 mm)
|
| Max. Slope Rate
|
7.5° (13.2%)
|
| Base Weight
|
58 kg
|
| Castor Wheels
|
9″ solid
|
| Drive Wheels
|
14″ x 3″ / 14″ x 4″ knobby – Solid or Pneumatic
|
| Anti- tip Wheels
|
4″ (102 mm)
|
| Battery Size
|
2x 70 Ah
|
| Speeds
|
4 mph (6.44 kmh) / 6 mph (9.65 kmh) / 7 mph (11.26 kmh)
|
| Motor Packages
|
2-Pole / 4-Pole, Rear-wheel
|
| Suspension System
|
SRS (Smooth Ride Suspension)
|
| Electronics
|
Q-Logic NES / Q-Logic 3
|
| Seats
|
Contour / TB Flex / TB3
|
| Seat Width
|
12″ – 22″
|
| Seat Depth
|
12″ – 22″
|
| Powered Positioning
|
Tilt / Recline / Lift / Legs
|
| Seat Lift
|
10″ lift @ 3.5 mph
|
| Standard Features
|
USB charger port and front & rear LED fender lights
|
| Crash Tested
|
Yes
|
