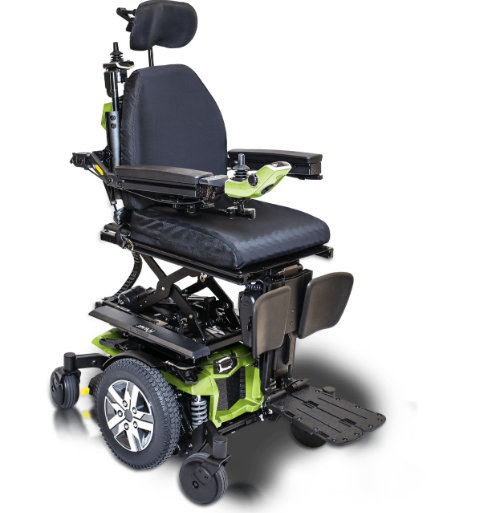

With features like standard 4-pole motors, Mid-Wheel 6 Drive Design and ATX Suspension, the Q6 Edge HD is engineered to meet the performance needs of the most active user. The Q6 Edge HD accepts a complete range of seating and electronics options to deliver exceptional rehab capability at an excellent value, and is available with our iLevel technology.
| Drive Configuration
|
Mid-wheel drive
|
|---|---|
| Weight Capacity
|
32.2st (204 kg) / 35.7st (227 kg)
|
| Turning Radius
|
19.75″ (502 mm)
|
| Length
|
35.6″ (904 mm)
|
| Width
|
26.25″ (667mm) with 14″ wheels 28.25″ (718m) with knobby wheels
|
| Ground Clearance
|
3″ (76 mm)
|
| Max. Obstacle Climbing
|
3.5″ (89 mm)
|
| Max. Slope Rate
|
6° (10.5%)
|
| Base Weight
|
65 kg
|
| Castor wheels
|
Front: 6″ solid Rear: 6″ solid
|
| Drive wheels
|
14″ x 3″ / 14″ x 4″ knobby – Solid or Pneumatic
|
| Battery Size
|
2x 70 Ah
|
| Speeds
|
4 mph (6.44 kmh)
|
| Motor Packages
|
4-Pole, Mid-wheel 6
|
| Suspension System
|
ATX
|
| Electronics
|
Q-Logic 3 / R-Net
|
| Seats
|
Synergy / TB3
|
| Seat Width
|
20″ – 32″
|
| Seat Depth
|
20″ – 28″
|
| Powered Positioning
|
Tilt / Recline / Lift / Legs
|
| iLevel
|
10″ lift @ 3.5 mph
|
| Standard Features
|
USB charger port
|
| Crash Tested
|
Yes
|
