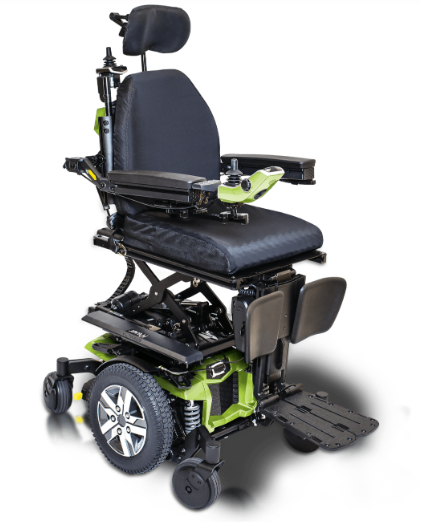

The revolutionary Quantum Q6 Edge 2.0 Power Chair has been engineered to meet the performance needs and demands of the most active user. The chair is available with either the Synergy Seating System for easy and quick adjustments or the TRU-Balance 3 Power Positioning System, which includes power seating options. The ATX suspension system enables the greatest quality ride and enhances obstacle climbing using the 62Ah batteries, which are easily accessible through the front shroud and provide an extended range. One of the many optional extras for this chair is the Q-Logic three expandable controls, which include Bluetooth.
| Drive Configuration
|
Mid-wheel Drive
|
|---|---|
| Weight capacity
|
21.6 st (136 kg)
|
| Turning radius
|
20.5″ (521 mm)
|
| Length
|
35.5″ (902 mm)
|
| Width
|
24.4″ (620mm) with 14″ wheels 26.4″ (671mm) with knobby wheels |
| Ground clearance
|
2.7″ (69 mm)
|
| Max. Obstacle Climbing
|
3.5″ (89 mm)
|
| Max. Slope Rate
|
6° (10.5%)
|
| Base Weight
|
63 kg
|
| Castor wheels
|
Front: 6″ solid Rear: 6″ solid |
| Drive wheels
|
14″ x 3″ / 14″ x 4″ knobby – Solid or Pneumatic
|
| Battery Size
|
2x 62 Ah
|
| Speeds
|
4 mph (6.44 km/h) / 6 mph (9.65 km/h)
|
| Motor Packages
|
2-Pole / Accu-Trac, Mid-wheel 6
|
| Suspension System
|
ATX
|
| Electronics
|
NE+ / Q-Logic 3 / VR2 / R-Net
|
| Seats
|
TB Flex / TB3
|
| Seat Width
|
10″ – 22″ |
| Seat Depth
|
10″ – 22″
|
| Powered Positioning
|
Tilt / Recline / Lift / Legs
|
| iLevel
|
12″ lift @ 3.5 mph
|
| Standard Features
|
USB charger port
|
| Crash Tested
|
Yes
|
