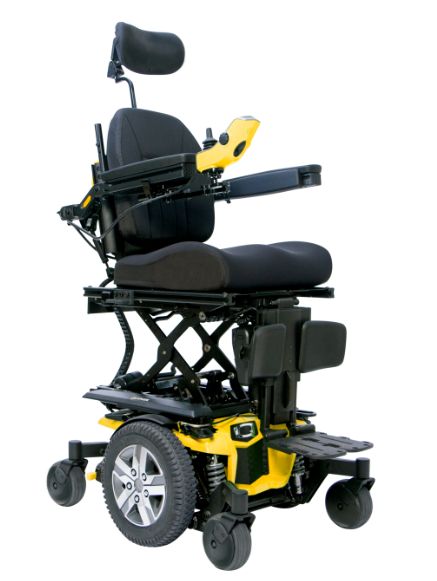

The revolutionary Quantum Q6 Edge 2.0 HD Powerchair has been engineered to meet the performance needs and demands of the most active user with added heavy duty capabilities. The chair features a stylish Synergy Seating System, allowing adjustments to made easily and quickly. The ATX suspension system enables the greatest quality ride and enhances obstacle climbing using the 62Ah batteries, easily accessible through the front shroud, providing an extended range. One of the many optional extras for this chair is the Q-Logic 3 expandable controls, which include Bluetooth.
| Drive Configuration
|
Mid-wheel Drive
|
|---|---|
| Weight capacity
|
28.8 st (181 kg)
|
| Turning radius
|
20.5″ (521 mm)
|
| Length
|
35.5″ (902mm)
|
| Width
|
24.4″ (620mm) with 14″ wheels 26.4″ (671mm) with knobby wheels
|
| Ground clearance
|
2.7″ (69 mm)
|
| Max. Obstacle Climbing
|
2.4″ (61 mm)
|
| Max. Slope Rate
|
6° (10.5%)
|
| Base Weight
|
63 kg
|
| Castor wheels
|
Front: 6″ solid Rear: 6″ solid
|
| Drive wheels
|
14″ x 3″ / 14″ x 4″ knobby – Solid or Pneumatic
|
| Battery Size
|
2x 62 Ah
|
| Speeds
|
4 mph (6.44 kmh)
|
| Motor Packages
|
4-Pole, Mid-wheel 6
|
| Suspension System
|
ATX
|
| Electronics
|
NE+ / Q-Logic 3 / R-Net
|
| Seats
|
TB3
|
| Seat Width
|
20″ – 24″
|
| Seat Depth
|
20″ – 24″
|
| Powered Positioning
|
Tilt / Recline / Lift / Legs
|
| iLevel
|
10″ lift @ 3 mph
|
| Standard Features
|
USB charger port
|
| Crash Tested
|
Yes
|
