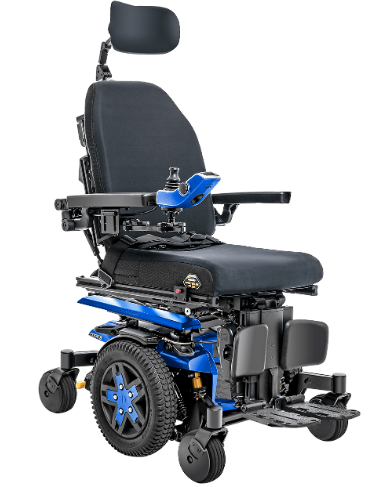

The design of the Edge 3 is for the most advanced powerchair experience ever! Upgraded SRS (Smooth Ride Suspension) provides a smooth, comfortable ride and advanced stability. Optional iLevel is available with up to 305 mm of power-adjustable seat height. Standard features include front and rear LED fender lights, a USB charger, and drive wheel colour accents. The Edge 3 is available with 2-pole motors with a speed of 4 mph or optional 4-pole motors with a speed of 6 mph!
| Drive Configuration
|
Mid-wheel Drive
|
|---|---|
| Weight capacity
|
21.6st (136 kg)
|
| Turning radius
|
20.5″ (521 mm)
|
| Length
|
32.23″(819 mm)
|
| Width
|
24.4″ (620mm) with 14″ wheels 26.4″ (671mm) with knobby wheels
|
| Ground clearance
|
2.7″ (69 mm)
|
| Max. Obstacle Climbing
|
3.5″ (89 mm)
|
| Max. Slope Rate
|
7.5° (13.2%)
|
| Base Weight
|
63 kg
|
| Castor wheels
|
Front: 6″ solid Rear: 6″ solid
|
| Drive wheels
|
14″ x 3″ / 14″ x 14″ knobby – Solid or Pneumatic
|
| Battery Size
|
2x 62 Ah
|
| Speeds
|
4 mph (6.44 km/h) / 6 mph (10 kmh) / 7 mph (11.26 km/h)
|
| Motor Packages
|
2-Pole / 4-Pole / Accu-Trac, Mid-wheel 6
|
| Suspension System
|
SRS (Smooth Ride Suspension)
|
| Electronics
|
Q-Logic NES / Q-Logic 3
|
| Seats
|
TB3 / TB4
|
| Seat Width
|
12″ – 22″
|
| Seat Depth | 12″ – 22″
|
| Powered Positioning
|
Tilt / Recline / Lift / Legs
|
| iLevel
|
12″ lift @ 4.5 mph
|
| Standard Features
|
USB charger port and front & rear LED fender lights
|
| Crash Tested
|
Yes
|
