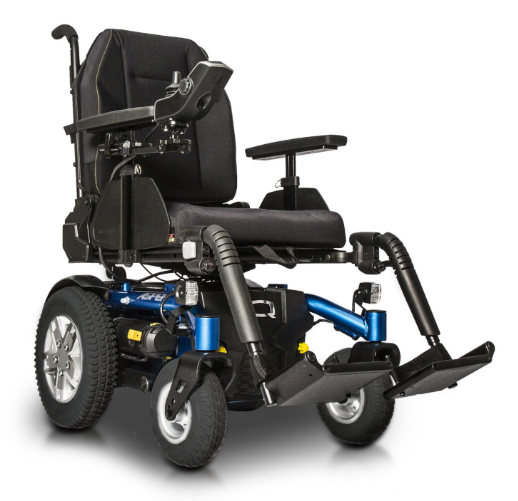

The Aspen rear-wheel drive power chair boasts a compact frame, making it more manoeuvrable than other rear-wheel drive powerchairs. The Aspen provides improved obstacle climbing performance and a tighter turning radius. It has a tubular design frame and is compatible with several seating and electronics, making it a great powerchair choice at an affordable price.
| Drive Configuration
|
Rear-wheel drive
|
|---|---|
| Weight Capacity
|
21.6 st (136 kg)
|
| Turning Radius
|
25.25″ (642 mm)
|
| Length
|
33.41″ (849 mm)
|
| Width
|
22.79″ (579 mm)
|
| Ground Clearance
|
3.58″ (91 mm)
|
| Max. Obstacle Climbing
|
2.36″ (60 mm)
|
| Max. Slope Rate
|
6° (10.5%)
|
| Base Weight
|
129.48 kg
|
| Castor Wheels
|
8″ or 9″ – Solid or Pneumatic
|
| Drive Wheels
|
14″ x 3″ – Solid or Pneumatic
|
| Anti-tip Wheels
|
2″ (51 mm)
|
| Battery Size
|
2x 62 Ah
|
| Speeds
|
4 mph (6.44 kmh) / 6 mph (9.65 kmh)
|
| Motor Packages
|
2-Pole, Rear-wheel
|
| Suspension System
|
Independent Rear Suspension
|
| Electronics
|
Q-Logic NES / Q-Logic 3 / VR2 / R-Net
|
| Seats
|
TB Flex
|
| Seat Width
|
15″ – 20″
|
| Seat Depth
|
15″ – 20″
|
| Powered Positioning
|
Tilt / Recline / Lift / Legs
|
| Seat Lift
|
10″ lift
|
| Crash Tested
|
Yes
|
